Imray chart C26 Passage Chart - Southern North Sea IJmuiden to Die Elbe
British Isles and Northwest Europe | C Series
Detailkaarten van onder andere:
- Den Helder
- West -Terschelling
- Borkum jachthaven
- Aanloop van Norderney
Compleet bijgewerkt met onder andere de laatste dieptelodingen en gegevens over de laatste ontwikkelingen van de parken met windmolens op zee. Inclusief de laatste wijzigingen in het Verkeersscheidinsstelsel North Friesland TSS.
Updates op de Imray website.

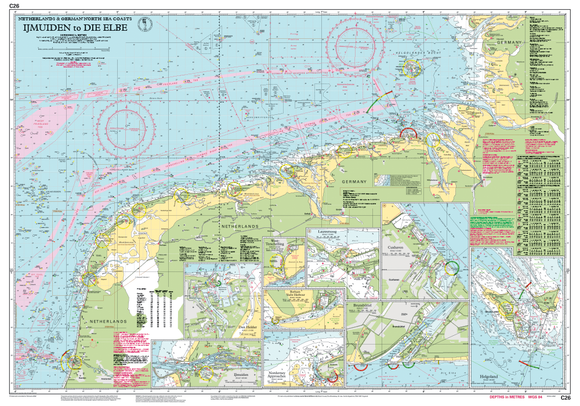

Passage chart of the Dutch and north German coasts from Ijmuiden to Helgoland and the approaches to the Elbe. Five-minute gridlines. Scale: 1 : 280.000. Larger scale plans of Ijmuiden, Den Helder, Brunsbuttel, Lawersoog, Cuxhaven, Helgoland and Norderney. Tidal stream diagrams.
Detailed plans or insets include:
- IJmuiden (Scale: 1 : 35.000)
- Den Helder (Scale: 1 : 21.000)
- West -Terschelling (Scale: 1 : 20.000)
- Lauwersoog (Scale: 1 : 15.000)
- Borkum Yacht Harbour (Scale: 1 : 25.000)
- Norderney Approaches (Scale: 1 : 66.000)
- Helgoland (Scale: 1 : 25.000)
- Cuxhaven (Scale: 1 : 12.500)
- Brunsbüttel (Scale: 1 : 12.500)
On the 2017 edition changes have been made to depths, windfarms, restricted areas, and oil and gas fields throughout. Changes to the North Friesland TSS are shown. In this edition the latest depth surveys have been applied throughout. The latest firing practice areas are shown, as is up-to-date wind farm information. The chart has had general updating throughout.
Imray C Series charts cover sailing areas in northwestern Europe. These series form the most comprehensive range of yachtsmen’s charts available. Suitable for passage planning and larger scale charts for navigating the coastal waters even close to shore.
First published: 01-08-2013, current edition printed: April-2017.
The information shown on charts is liable to constant change. Corrections are made available on the Imray website.
Visit this website to obtain the correction for the previous 2nd edition.
Imray is now adding smart phone readable QR codes on their charts. These will provide a fast link to chart corrections and book supplements which are available at the Imray website.
About Imray Charts:
Imray charts set the standards for the leisure sector with award-winning cartography which features a distinctive colour scheme, coloured light sectors and fine overprinted latitude and longitude grids to make plotting easier. Imray Charts are based on up-to-date official surveys. These charts receive continual attention and amendment by skilled staff who monitor corrections to ensure that they are always as correct as possible when despatched.
Charts are generally reprinted annually, at which time they are corrected to date. Once a new edition has been published the old edition cannot be corrected and is unsafe for navigation and should be replaced.
Imray is based in St. Ives, England, UK.
Nearly all Imray charts are printed on Pretex, a partially synthetic paper, which folds well and is durable in damp conditions. It may be drawn on in both soft pencil and ballpoint pen. Imray charts are normally published to an approximately A4 fold format and supplied in robust PVC wallets.
All Imray charts are based on WGS 84 datum. Most charts are metric. Every chart includes details of the datum and projection on which it was based, to allow it to be used safely with satellite navigation systems. Details of the latest printing and edition dates of charts are available.
Nog niet alle beschrijvingen zijn vertaald.
Daarom staat op deze pagina de beschrijving in het Engels.
